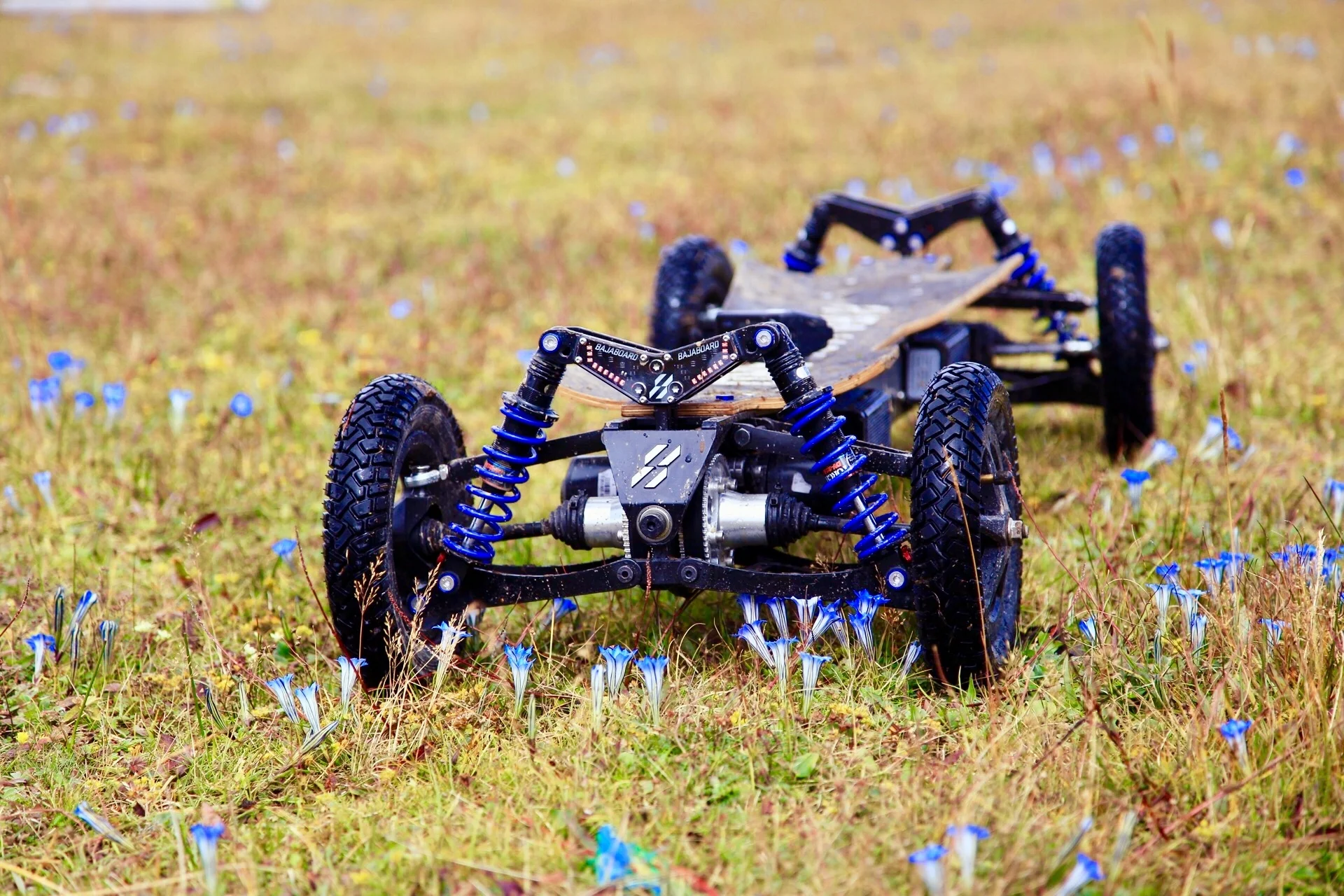

G4X SPECIFICATION

PERFORMANCE
Top speed 50km/hr (31mi/hr)
Range 30-35km (18-22mi)
Hill climb 45% grade (4x4 mode)
Max recommended payload 110kg (240lbs)

ELECTRICS
Number of motors 4
Motor Type 63mm brushless DC, high torque
Transmission 4:1 belt drive
Battery 900Wh Li-ion
Recharge Time 2 - 2.5hrs
Control Wireless 2.4GHz hand controller
Light 10W LED headlight (white) & tail / brake light (red)

CHASSIS
Suspension system Aluminium independent double-wishbone
Backbone Aircraft grade aluminium
Shock Absorber Spring shocks, 60mm travel, adjustable pre-load & rebound
Tyre Pneumatic, 254mm (10") diameter
Overall dimension 1270mm (50") x 495mm (19.5") x 280mm (11")
